Viair Dual 280C Onboard Air System - 20011—
$859.95
The Story

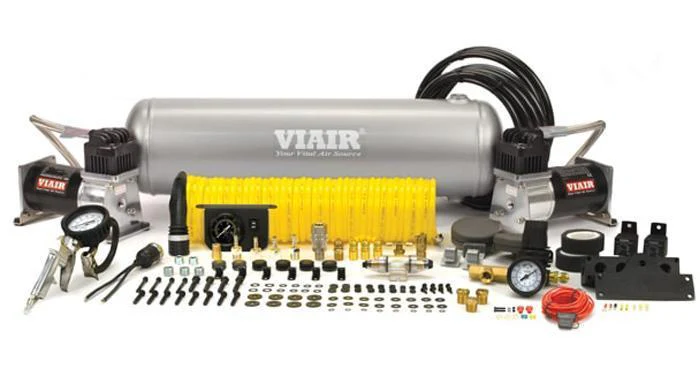

The Viair 20011 is an extremely dependable, 2.5-gallon air system. This single part supplies you with everything to install an extremely reliable, and sophisticated onboard air system. With this system installed you’ll be able to air up tires on the go or even perform roadside repairs with air tools. The 20011 kit includes a 2.5-gallon air tank, two 280C air compressors, a -foot coil hose, a tire inflation gun, a 0-200 PSI pressure regulator, a billet air distribution block, and just about every extra you could imagine.
| 2.5 GALLON TANK | FILL RATE |
|---|---|
| 0 to 105 PSI | 1 min. 06 sec. (± 10 sec.) |
| 85 to 105 PSI | 16 sec. (± 03 sec.) |
| 0 to 145 PSI | 1 min. 44 sec. (± 10 sec.) |
| 110 to 145 PSI | 31 sec. (± 05 sec.) |
| 33″ X 12.5″ | FILL RATE |
| 0 to 30 PSI | 4 min. 10 sec. (± 15 sec.) |
| 15 to 30 PSI | 1 min. 50 sec. (± 10 sec.) |
| 35″ X 15.5″ | FILL RATE |
| 0 to 30 PSI | 5 min. 02 sec. (± 15 sec.) |
| 15 to 30 PSI | 2 min. 15 sec. (± 10 sec.) |
- Viair 2.5 Gallon Air Tank
- Dual Viair 280C Black & Silver Air Compressors
- 30ft. Coil Hose w/ Quick Connects
- Tire Inflation Gun with 200 PSI Gauge
- 0-150 PSI Pressure Regulator
- 1/4in NPT Quick Connect Coupler (F)
- Pressure Switch (110 PSI on, 150 PSI off)
- (2) 40-Amp Relays
- Inline Fuse Holder w/ Fuse
- 1/4in NPT 250 PSI Safety Valve
- 1/4in NPT Drain Cock
- (2) 1/8in BSP to 1/4in NPT (Air Locker Use)
- (3) 1/4in NPT Compression Fittings
- (5) 1/4in NPT Plugs Kit
- 6-Port Billet Manifold with Mounting Bracket (1/4in)
- (2) 15ft. 1/4in Air Line
- Electrical Connections
| Part Number | AS-280DK |
| Manufacturer | Viair |
| MPN | 20011 |
| Refill Time | 53 Seconds |
| Empty Fill Time | 3 Min 13 Sec. |
| Operating Pressure | 150 PSI |
| Max Pressure | 150 PSI |
| Restart Pressure | 110 PSI |
| Drain Cock | Yes |
| Safety Valve | Yes, 175 PSI |
| Relay | Yes, 40 amps |
| Wiring Kit | Included |
| Fitting Kit | Included |
| Instructions | Included |
| Warranty | 1 Year Limited Lifetime |
| Air Source Kit Tank | Viair 2.5 Gallon 200 PSI 6 Port Tank |
| Tank Part Number | TA-206V4 |
| Tank MPN | 91028 |
| Tank Volume | 2.5 gals (9.5 L) |
| Tank Ports | 6 x ¼″ NPT |
| Tank Length | 23.50″ (596.9 mm) |
| Tank Width | 6.00″ (152.4 mm) |
| Tank Height | 7.50″ (190.5 mm) |
| Tank Weight | 11.805 lb (5.35 Kg) |
| Air Source Kit Compressor | 2x Viair Black & Silver 280 Air Compressor |
| Compressor Part Number | AC-280 |
| Compressor MPN | 28002 |
| Voltage | 12 volts DC |
| Max Amperage | 32 amps (16 each) |
| Max Output | 2.98 CFM (1.49 each) |
| Maximum Duty Cycle | 30% @ 100 PSI |
| Maximum Working Pressure | 200 PSI |
| Compressor Length | 7.80″ (198.12 mm) (each) |
| Compressor Width | 3.94″ (100 mm) (each) |
| Compressor Height | 6.75″ (171.5 mm) (each) |
| Compressor Weight | 8.00 lb (3.63 Kg) (each) |
| Pressure Switch | Viair 110/150 PSI Switch |
| Pressure Switch PN | PS-150R |
| Pressure Switch MPN | 90111 |
| Pressure Switch Fitting | 1x ⅛″ NPT male |
| Turn-Off Pressure | 150 PSI |
| Restart Pressure | 150 PSI |
| Pressure Switch Max Amps | 40 amps |
| Tire Inflation Chuck Type | Inflation Gun |
| Inflation Gun Max Press. | 200 PSI |
| Inflation Gun Gauge Press. | 200 PSI |
| Hose Length | 30 ft (9.14 m) |
-
