$110.93The Story
24V? NO PROBLEMO.

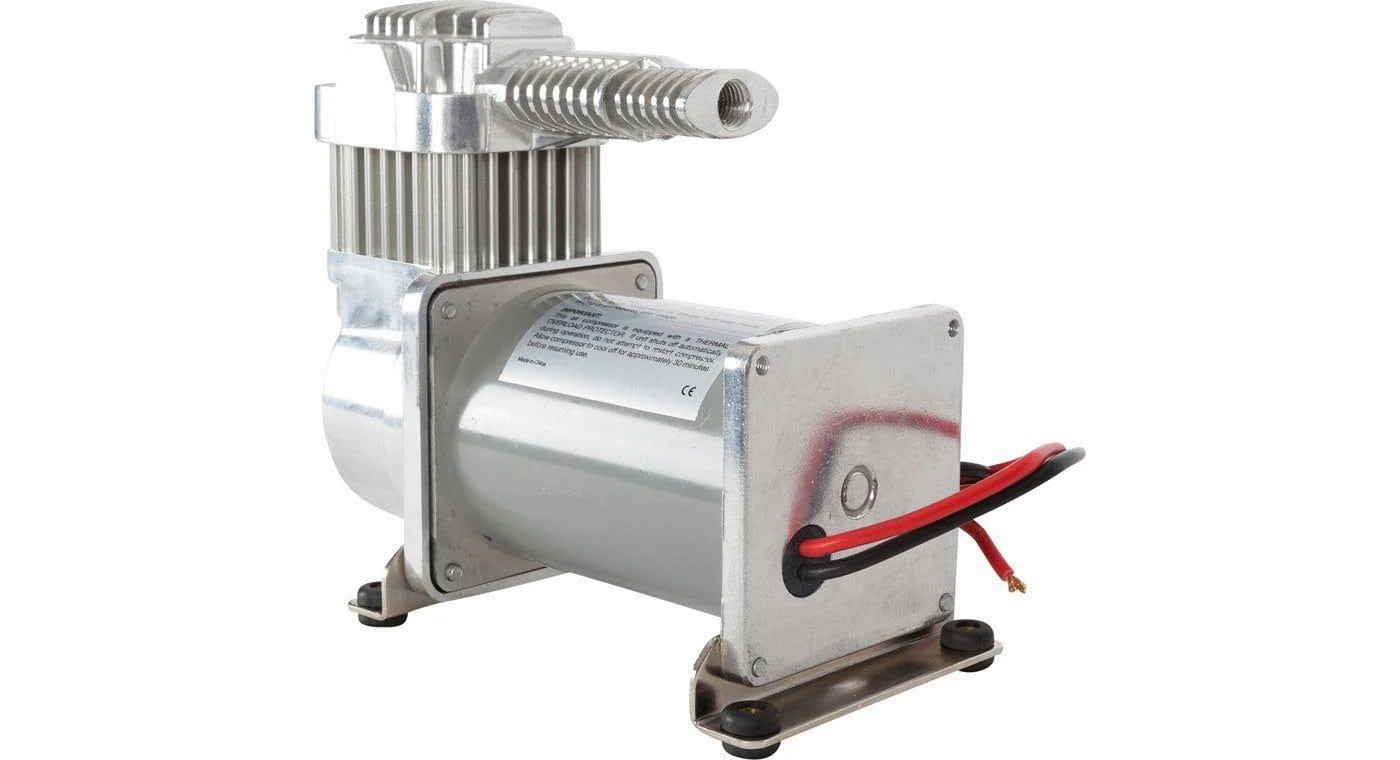

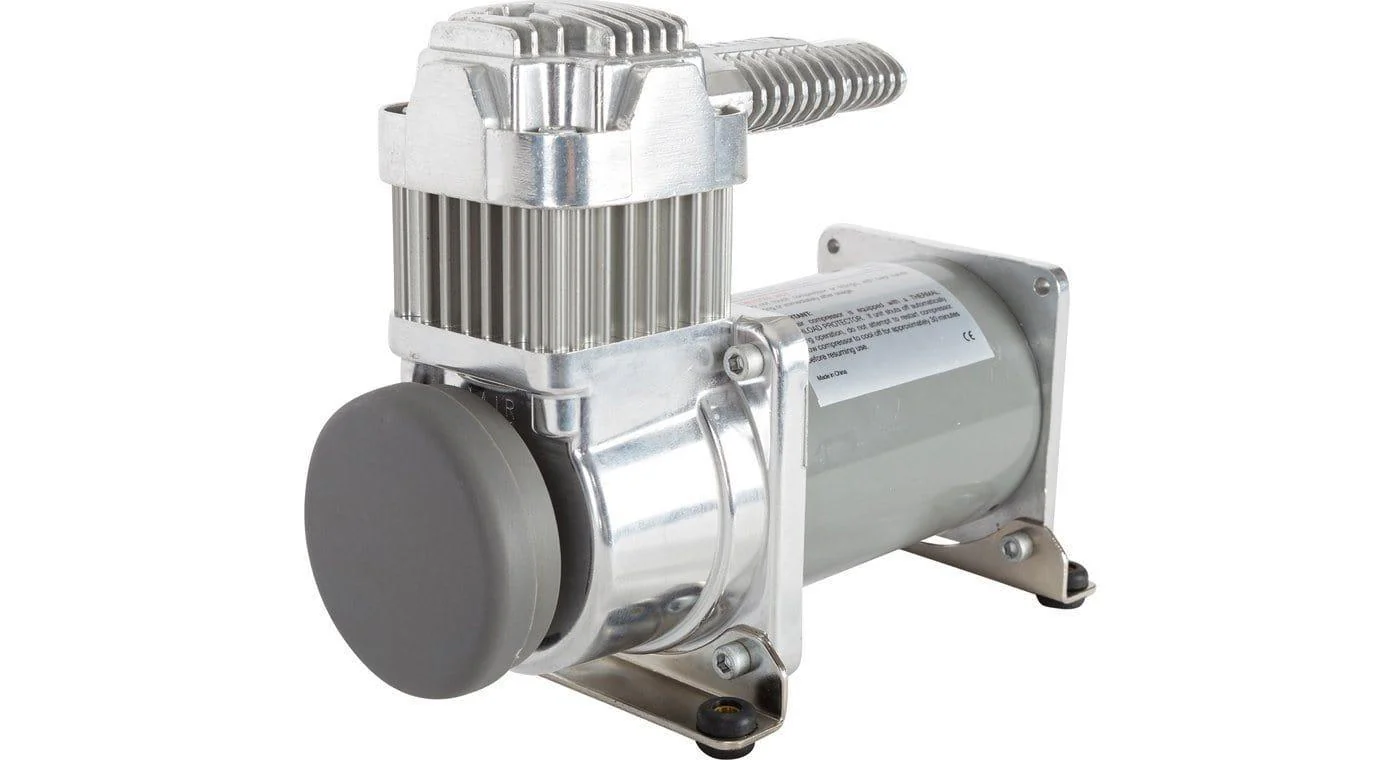

Get ready for heavy-duty power, now in 24-volt! The Viair 250C-IG is the perfect sidekick for any industrial air system, ready to tackle even the toughest conditions with ease. Fill up your 2.5-gallon tank to 150 PSI with this constant-duty air compressor, great for all pneumatic applications. This compact powerhouse produces 1.0 CFM while only drawing 6 amps from your battery and recharges a 2.5-gallon tank from 110-145 PSI in just over 2 minutes.
- Revolutionary Heat Dissipation Head Design
- 24 Volt
- Industrial Grade & CE Spec.
- Permanent Magnetic Motor
- Oil-less Design
- High-Performance PTFE Piston Ring
- Stainless Steel Valves
- Moisture & Dirt Resistant
- Gearless Direct Drive Motor
- Anodized Aluminum Alloy Cylinder
- Automatic Reset Thermal Overload Protector
- Mounting Plates with Vibration Isolators
- Stainless Steel 1/4" Braided Leader Hose
- Remote Mountable Intake Filter Assembly
- Insulated Wiring with Connectors
Note: Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8″ is 10 ~ 11 ft. lbs. Recommended torque for 1/4″ and 3/8″ is 12 ~ 15 ft. lbs.
**24-volt compressors should always be wired to a 24-volt electrical system. Failure to do so can cause serious damage and void your warranty.**
| 24-VOLT COMPRESSOR | |||||
|---|---|---|---|---|---|
| PSI | CFM | A | BAR | LPM | A |
| 0 | 1.00 | 3 | 0 | 28.3 | 3 |
| 10 | 0.88 | 3 | 1.0 | 24.4 | 3 |
| 20 | 0.84 | 4 | 2.0 | 22.2 | 4 |
| 30 | 0.78 | 4 | 3.0 | 19.7 | 4 |
| 40 | 0.71 | 4 | 4.0 | 17.7 | 5 |
| 50 | 0.67 | 5 | 5.0 | 16.1 | 5 |
| 60 | 0.61 | 5 | 6.0 | 14.6 | 5 |
| 70 | 0.58 | 5 | 7.0 | 13.2 | 6 |
| 80 | 0.54 | 5 | 8.0 | 11.7 | 5 |
| 90 | 0.51 | 5 | 9.0 | 10.3 | 5 |
| 100 | 0.47 | 6 | 10.0 | 8.8 | 5 |
| 110 | 0.44 | 6 | |||
| 120 | 0.40 | 6 | |||
| 130 | 0.36 | 5 | |||
| 140 | 0.33 | 5 | |||
| 150 | 0.29 | 5 | |||
* Supply Voltage: 28.0 Volts
| 24-VOLT COMPRESSOR | |
|---|---|
| 1.0 GALLON TANK | FILL RATE |
| 0 to 105 PSI | 1 min. 45 sec. (± 10 sec.) |
| 85 to 105 PSI | 26 sec. (± 05 sec.) |
| 0 to 145 PSI | 2 min. 45 sec. (± 10 sec.) |
| 110 to 145 PSI | 55 sec. (± 10 sec.) |
| 2.5 GALLON TANK | FILL RATE |
| 0 to 105 PSI | 4 min. 15 sec. (± 10 sec.) |
| 85 to 105 PSI | 1 min. 00 sec. (± 05 sec.) |
| 0 to 145 PSI | 7 min. 00 sec. (± 15 sec.) |
| 110 to 145 PSI | 2 min. 15 sec. (± 10 sec.) |
* Supply Voltage: 28.0 Volts
- Viair 250-IG 24 Volt Air Compressor
- 1/4" NPT Braided Leader Hose & Check Valve
- Two-Stage Air Filter
- Replacement Filter Elements
- 1 Year ManufactureR's Defect Warranty
- Mounting Hardware
| Part Number | AC-250IG-24 |
| Manufacturers Part Number | 25058 |
| Voltage | 24 Volts DC |
| Max Amperage | 6 Amps |
| Maximum Duty Cycle | 100% @ 100 PSI |
| Maximum Pressure | 150 PSI |
| Max Tank Size | 2.5 Gallon |
| CFM @ 0 PSI | 1.00 CFM |
| CFM @ 100 PSI | 0.51 CFM |
| Length | 7.4″ (187.96 mm) |
| Width | 3.9″ (99.06 mm) |
| Height | 6.75″ (171.5 mm) |
| Weight | 6.75 lb (3.06 Kg) |
-
Money-Back Guarantee/Refund Policy
All merchandise unless otherwise indicated may be returned within 30 days from the shipment arrival date for a refund. A Returned Merchandise Authorization (RMA) number is required for all returns. A 15% restocking fee may apply. Additional deductions may be made to reflect the products current market value. These terms apply to all refunds. Most products are shipped with a refund/replacement guarantee period unless otherwise noted in the product listing. Customers must inform HornBlasters.com of any order discrepancy within 7 days from the invoice date so that we may investigate and resolve the situation accordingly. -
Warranty
This product is backed by Viair's 1-year manufacturer's warranty! All Warranty claims for Viair products must be handled directly through Viair after 30 days. They can be reached at 1-949-585-0011.
-
HornBlasters.com Satisfaction Guarantee
HornBlasters.com offers our customers a 30-day satisfaction replacement or refund guarantee on all purchases, except when otherwise noted in the product listing. -
Cross-Shipments
HornBlasters.com will not cross-ship returned merchandise. -
Physical Damage Policy
Physical damage to any product purchased at HornBlasters.com will effectively void warranty coverage. Physical damage includes but is not limited to improper handling and/or any other type of damage sustained by irregular usage.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
24V? NO PROBLEMO.
Get ready for heavy-duty power, now in 24-volt! The Viair 250C-IG is the perfect sidekick for any industrial air system, ready to tackle even the toughest conditions with ease. Fill up your 2.5-gallon tank to 150 PSI with this constant-duty air compressor, great for all pneumatic applications. This compact powerhouse produces 1.0 CFM while only drawing 6 amps from your battery and recharges a 2.5-gallon tank from 110-145 PSI in just over 2 minutes.
- Revolutionary Heat Dissipation Head Design
- 24 Volt
- Industrial Grade & CE Spec.
- Permanent Magnetic Motor
- Oil-less Design
- High-Performance PTFE Piston Ring
- Stainless Steel Valves
- Moisture & Dirt Resistant
- Gearless Direct Drive Motor
- Anodized Aluminum Alloy Cylinder
- Automatic Reset Thermal Overload Protector
- Mounting Plates with Vibration Isolators
- Stainless Steel 1/4" Braided Leader Hose
- Remote Mountable Intake Filter Assembly
- Insulated Wiring with Connectors
Note: Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8″ is 10 ~ 11 ft. lbs. Recommended torque for 1/4″ and 3/8″ is 12 ~ 15 ft. lbs.
**24-volt compressors should always be wired to a 24-volt electrical system. Failure to do so can cause serious damage and void your warranty.**
| 24-VOLT COMPRESSOR | |||||
|---|---|---|---|---|---|
| PSI | CFM | A | BAR | LPM | A |
| 0 | 1.00 | 3 | 0 | 28.3 | 3 |
| 10 | 0.88 | 3 | 1.0 | 24.4 | 3 |
| 20 | 0.84 | 4 | 2.0 | 22.2 | 4 |
| 30 | 0.78 | 4 | 3.0 | 19.7 | 4 |
| 40 | 0.71 | 4 | 4.0 | 17.7 | 5 |
| 50 | 0.67 | 5 | 5.0 | 16.1 | 5 |
| 60 | 0.61 | 5 | 6.0 | 14.6 | 5 |
| 70 | 0.58 | 5 | 7.0 | 13.2 | 6 |
| 80 | 0.54 | 5 | 8.0 | 11.7 | 5 |
| 90 | 0.51 | 5 | 9.0 | 10.3 | 5 |
| 100 | 0.47 | 6 | 10.0 | 8.8 | 5 |
| 110 | 0.44 | 6 | |||
| 120 | 0.40 | 6 | |||
| 130 | 0.36 | 5 | |||
| 140 | 0.33 | 5 | |||
| 150 | 0.29 | 5 | |||
* Supply Voltage: 28.0 Volts
| 24-VOLT COMPRESSOR | |
|---|---|
| 1.0 GALLON TANK | FILL RATE |
| 0 to 105 PSI | 1 min. 45 sec. (± 10 sec.) |
| 85 to 105 PSI | 26 sec. (± 05 sec.) |
| 0 to 145 PSI | 2 min. 45 sec. (± 10 sec.) |
| 110 to 145 PSI | 55 sec. (± 10 sec.) |
| 2.5 GALLON TANK | FILL RATE |
| 0 to 105 PSI | 4 min. 15 sec. (± 10 sec.) |
| 85 to 105 PSI | 1 min. 00 sec. (± 05 sec.) |
| 0 to 145 PSI | 7 min. 00 sec. (± 15 sec.) |
| 110 to 145 PSI | 2 min. 15 sec. (± 10 sec.) |
* Supply Voltage: 28.0 Volts
- Viair 250-IG 24 Volt Air Compressor
- 1/4" NPT Braided Leader Hose & Check Valve
- Two-Stage Air Filter
- Replacement Filter Elements
- 1 Year ManufactureR's Defect Warranty
- Mounting Hardware
| Part Number | AC-250IG-24 |
| Manufacturers Part Number | 25058 |
| Voltage | 24 Volts DC |
| Max Amperage | 6 Amps |
| Maximum Duty Cycle | 100% @ 100 PSI |
| Maximum Pressure | 150 PSI |
| Max Tank Size | 2.5 Gallon |
| CFM @ 0 PSI | 1.00 CFM |
| CFM @ 100 PSI | 0.51 CFM |
| Length | 7.4″ (187.96 mm) |
| Width | 3.9″ (99.06 mm) |
| Height | 6.75″ (171.5 mm) |
| Weight | 6.75 lb (3.06 Kg) |
-
